Flex-Pulsar II Variable pulse width laser source
Flex-Pulsar II is a variable pulse width laser source, which enables optical pulse outputs of various pulse widths with just one unit. A built-in pulse generator (PG) allows for internal or external triggering of pulse timing. Possible to equip with a laser of your desired wavelength.
Pulse width range: 0.5ns-8ns / 3ns-1.5μs

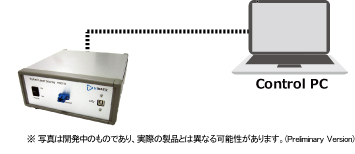

*Pulse width, repetition rate, driving current, and other parameters can be controlled via USB from an external PC.
Detailed product information(Japanese and English)
The main characteristics
- Pulse control function via external signal (external trigger)
- Equipped with a butterfly-type / coaxial laser diode
- Built-in TEC controller
- 100V AC power supply
- USB interface
- Supports PC command setup & control
Specifications/仕様
| Pulse width range | Peak current range | Repetation freq. range |
|---|---|---|
| 3ns to 1.5μs | up to 2.5A | 5kHz to 33MHz |
| Pulse width range | Peak current range | Repetation freq. range |
|---|---|---|
| 0.5ns to 8ns | up to 400mA | 5kHz to 100MHz |
